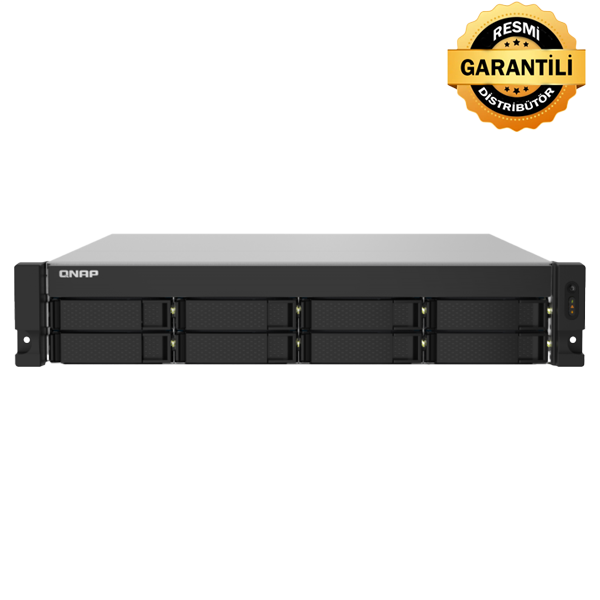

QNAP TS-832PXU-RP-4G 8 Yuvalı RACK NAS ÜNİTESİ
|
QNAP TS-832PXU-RP-4G 8 Yuvalı RACK NAS ÜNİTESİ |
|
|
CPU |
AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor |
|
CPU Architecture |
64-bit ARM |
|
Floating Point Unit |
+ |
|
Encryption Engine |
+ |
|
System Memory |
4 GB UDIMM DDR4 (1 x 4 GB) |
|
Maximum Memory |
16 GB (1 x 16 GB) |
|
Memory Slot |
1 x UDIMM DDR4 |
|
Flash Memory |
512 MB (Dual boot OS protection) |
|
Drive Bay |
8 x 3.5" SATA 6Gb/s, 3Gb/s |
|
Drive Compatibility |
3.5-inch bays: |
|
Hot-swappable |
+ |
|
M.2 Slot |
Optional via a PCIe adapter |
|
SSD Cache Acceleration Support |
|
|
2.5 Gigabit Ethernet Port (2.5G/1G/100M) |
2 (also support 10M) |
|
10 Gigabit Ethernet Port |
2 x 10GbE SFP+ |
|
Wake on LAN (WOL) |
Only the 2.5GbE port |
|
Jumbo Frame |
+ |
|
PCIe Slot |
1 |
|
USB 3.2 Gen 1 port |
4 |
|
Form Factor |
2U Rackmount |
|
LED Indicators |
HDD 1-8, Status, LAN, Stornage expansio |
|
Buttons |
Power, Reset |
|
Dimensions (HxWxD) |
69 × 482 × 534 mm |
|
Weight (Net) |
10.94 Kg |
|
Weight (Gross) |
16.87 Kg |
|
Operating temperature |
0 - 40 °C (32°F - 104°F) |
|
Storage Temperature |
-20 - 70°C (-4°F - 158°F) |
|
Relative Humidity |
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
|
Power Supply Unit |
250W (x2) PSU, 100 - 240V |
|
Power Consumption: Operating Mode, Typical |
69.191 W |
|
Fan |
2 x 70mm, 12VDC |
|
System Warning |
Buzzer |
|
Max. Number of Concurrent Connections (CIFS) - with Max. Memory |
700 |
