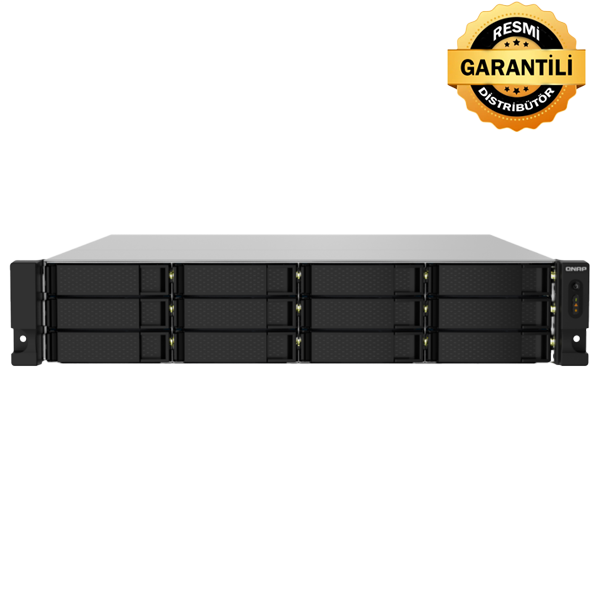

QNAP TS-1232PXU-RP-4G 12 Yuvalı Rack Nas Ünitesi

QNAP TS-1232PXU-RP-4G 12 Yuvalı Rack Nas Ünitesi

CPU

AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor

CPU Architecture

64-bit ARM

Floating Point Unit

+

Encryption Engine

+

System Memory

4 GB UDIMM DDR4 (1 x 4 GB)

Maximum Memory

16 GB (1 x 16 GB)

Memory Slot

1 x UDIMM DDR4

Flash Memory

512MB (Dual boot OS protection)

Drive Bay

12 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Hot-swappable

+

M.2 Slot

SSD Cache Acceleration Support

    +

2.5 Gigabit Ethernet Port (2.5G/1G/100M)

2 (also support 10M)

10 Gigabit Ethernet Port

  2 x 10GbE SFP+

Wake on LAN (WOL)

Only the 2.5GbE port

Jumbo Frame

   +

PCIe Slot

 1
Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance.

USB 3.2 Gen 1 port

    4

Form Factor

 2U Rackmount

LED Indicators

    HDD 1-12, Status, LAN, Storage expansion

Buttons

 Power, Reset

Dimensions (HxWxD)

    89 × 482 × 534 mm

Weight (Net)

 11.34 Kg

Weight (Gross)

    17.27 Kg

Operating temperature

 0 - 40 °C (32°F - 104°F)

Storage Temperature

   -20 - 70°C (-4°F - 158°F)

Relative Humidity

 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

    250W (x2) PSU, 100 - 240V

Power Consumption: Operating Mode, Typical

 83.57 W
 Tested with drives fully populated.

Fan

   2 x 70mm, 12VDC

System Warning

  Buzzer

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

     700
